XMS3399-C System on Module

System on Module XMS3399-C based on Rockchip RK3399

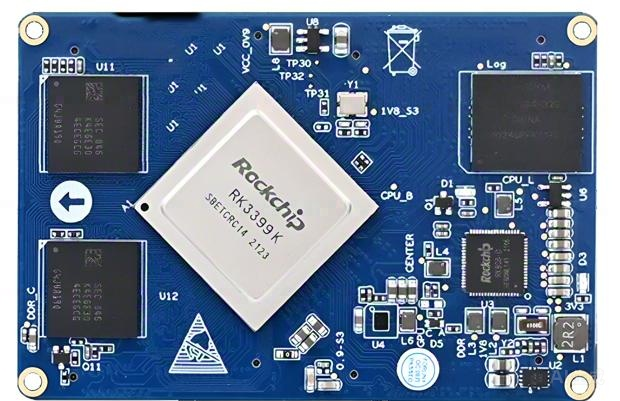

FET3399-C is a system on module (SoM) designed based on Rockchip RK3399 processor which consists of two Cortex-A72 featuring cores with frequency up to 1.8GHz and four Cortex-A53 featuring cores with frequency up to 1.4GHz. It's integrated with GPU Mali-T864, can support OpenGL ES1.1/ 2.0/ 3.0/ 3.1, OpenVG1.1, OpenCL and DX11. It has on-board 2GB LPDDR3 RAM and 16GB eMMC. Widely used in self-service terminal, edge computing, 5G smart terminal, POS machine, facial recognition and other fields.
Main Parameters of XMS3399-C SoM
• SoC - Rockchip RK3399 hexa-core processor with 2 Arm Cortex-A72s up to 1.8 GHz, 4 Cortex-A53s up to 1.4 GHz;
• RAM - 2GB or 4GB LPDDR3;
• ROM - 16GB or 32GB, eMMC;
• Video output - HDMI 2.0, AV port, MIPI DSI connector;
• OS - Linux 4.4, Android7.1, ForlinxDesktop 18.04;
• Camera - MIPI-CSI connector, support for 1x 13 megapixel or 2x8 megapixel cameras;
• USB - 2x USB Type-c, 2x USB 2.0 port;
• Power input - DC 12V;
• Dimensions - 46×70 mm.
