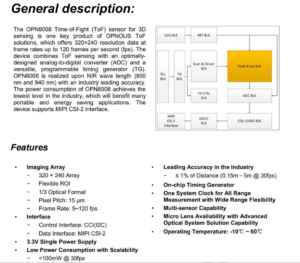

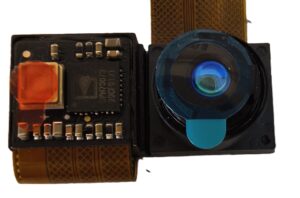

PBJ102123

Imaging Array:
320 x 240 Array
Flexible ROl
1/3 Optical Format
Pixel Pitch: 15 um
Frame Rate: 5~120 fps
Interface:
Control Interface: CCl(l2C)
Data Interface: MlPl CS1-2
3.3v Single Power Supply
Low Power Consumption with Scalability
<100mw @ 30fps
Leading Accuracy in the Industry
≤ 1% of Distance (0.15m~5m @ 30fps)
On-chip Timing Generator
One System Clock for All Range
Measurement with Wide Range Flexibility
Multi-sensor Capability
Micro Lens Availability with Advanced
Optical System Solution Capability
Operating Temperature:-10℃~60℃
