2.4 GHz Wi-Fi + Bluetooth ® + Bluetooth LE module
Built around ESP32 series of SoCs, Xtensa ® dual-core 32-bit LX6 microprocessor
4/8/16 MB ffash available
26 GPIOs, rich set of peripherals
On-board PCB antenna or external antenna connector
Certiffcation • Bluetooth certiffcation: BQB • RF certiffcation: See certiffcates • Green certiffcation: REACH/RoHS
Size：SMD,25.5x18mm
2.4 GHz Wi-Fi + Bluetooth ® + Bluetooth LE module
Built around ESP32 series of SoCs, Xtensa ® dual-core 32-bit LX6 microprocessor
4/8/16 MB ffash available
26 GPIOs, rich set of peripherals
On-board PCB antenna or external antenna connector
Certiffcation • Bluetooth certiffcation: BQB • RF certiffcation: See certiffcates • Green certiffcation: REACH/RoHS
Size ：SMD,19.2x18mm

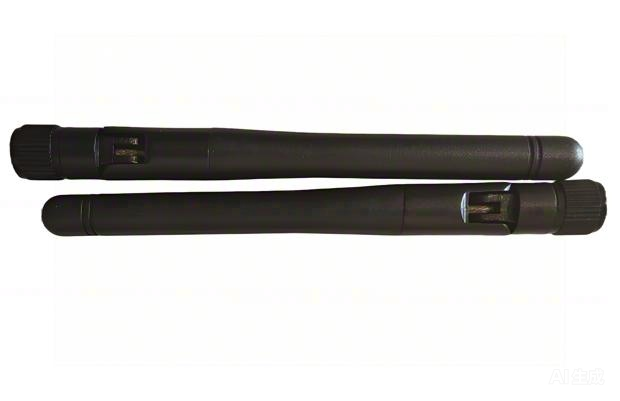

2.4G Rubber Stick Antenna 108*9.3MM
(working Frequency) 2400-2500 MHZ
(working Frequency) 2400-2500 MHZ ( Gain) 3DBI (Antenna efficiency) 35~80% (VSWR) <1.8 (Ploriaztion) Vertical
Replace RFA-02-C2M2-M10-N

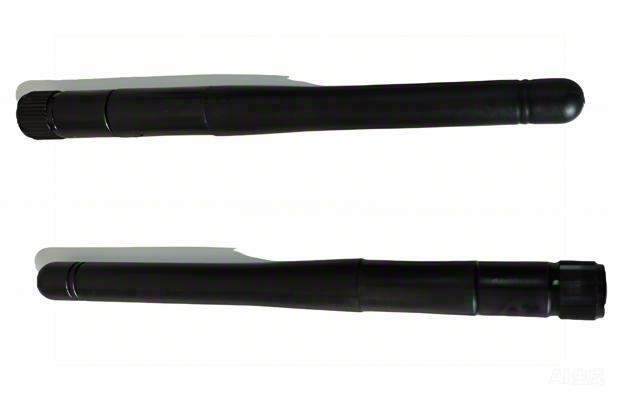

2.4G rubber stick antenna SMA male and female needle - L103mm
Frequency Range 2400~2500MHz ; Gain 2 DBI ;VSWR ≤1.5
Replace ANT-2.4-CW-RCT-xx
Replace ANT-2.4-CW-RCT-SS ;ANT-2.4-CW-RCT-RP

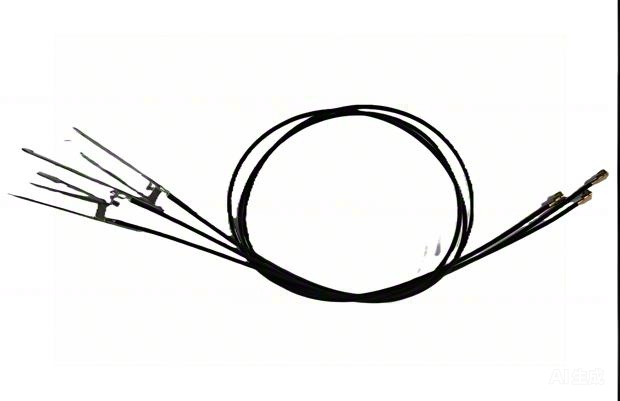

2.4G-1.13-L310MM-IPEX 1
Frequency Range 2400~2500MHz
Replace RFA-02-G03-D034
VSWR ≤2.0 Input Impedance 50 Ω Gain 0DBI
