System on Module | Computer on Module

A System on Module (SOM) / Computer on Module is a miniature circuit board that integrates core components of an embedded computer on a single module. System on Modules are designed to be plugged into carrier boards, which provide application specific peripheral devices and connectors.

System on Modules help product developers to accelerate time to market, optimize development cycle and reduce cost of ownership. Compulab SOM products are used by thousands of customers worldwide in medical devices, transportation, industrial automation, telecommunication, aerospace systems and countless other applications.

Advantages of Compulab System on Modules

  • 15-Years Availability
  • In-House Manufacturing
  • Direct Engineer Support
  • Linux and Yocto BSPs
  • UCM pin2pin compatible SOMs
  • SMT-level Configure-to-Order
PBJ102123
Imaging Array: 320 x 240 Array Flexible ROl 1/3 Optical Format
Pixel Pitch: 15 um
Frame Rate: 5~120 fps
Control Interface: CCl(l2C)
Data Interface: MlPl CS1-2
3.3v Single Power Supply
Low Power Consumption with Scalability <100mw @ 30fps
Leading Accuracy in the Industry ≤ 1% of Distance (0.15m~5m @ 30fps)
PBJ102151
Pixel size: 7.0umx7.0um
Resolution: 640Hx480V
Pixel array:648Hx487V
Frame rate: 10~60fps
Effective image size: 4,480umx3,360um
Optical format: 1/3 inch
Analog power supply: 3.3V
Host interface: CCl(l2C standard)orSPI(Mode3)
UCM-iMX95: NXP i.MX 95
NXP i.MX95 @2.0GHz
GbE + 10GbE, 2x PCIe, USB3.0
Up to 16GB LPDDR5, 128GB eMMC
Certified 802.11ax WiFi and BT 5.3
ARM Mali GPU, 4K VPU and AI/ML NPU
5x CAN, 8x UART, 8x SPI, 75x GPIO
2x LVDS, MIPI-DSI, 2x MIPI-CSI
28 x 40 mm, UCM pin2pin family

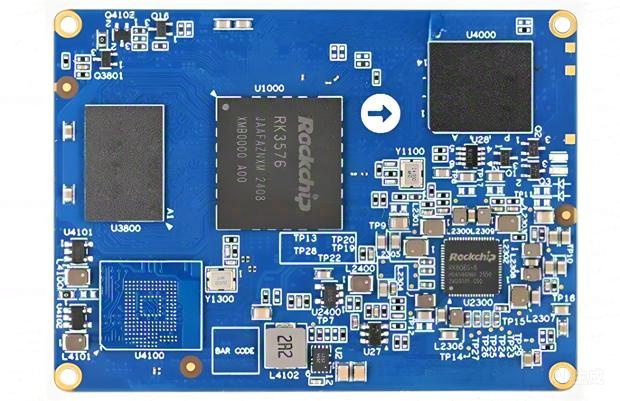

XMS 3576-C System on Module
CPU: Rockchip RK3576
Architecture: 4x Cortex-A72+4x Cortex-A53
Frequency: A72@2.3GHz+A53@2.2GHz
RAM: 2GB/4GB LPDDR4
ROM: 32GB eMMC
System: Android14，ForlinxDesktop 24.04，Linux 6.1.57

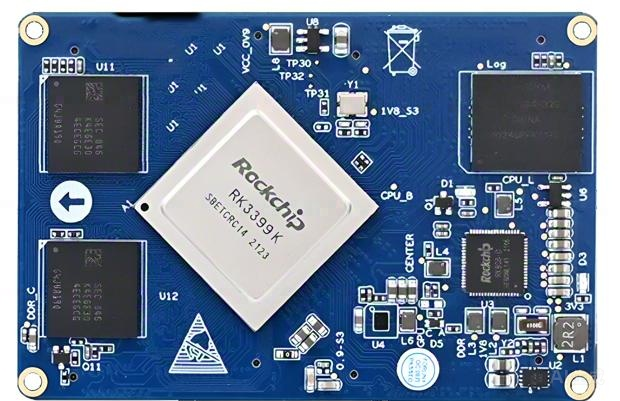

XMS3399-C System on Module
CPU: Rockchip RK3399
Architecture: 2x Cortex-A72 + 4x Cortex-A53
Frequency: A53@1.4GHz，A72@1.8GHz
RAM: 2GB / 4GB LPDDR3
ROM: 16GB / 32GB eMMC
System: Linux4.4.189，Android7.1，ForlinxDesktop 18.04

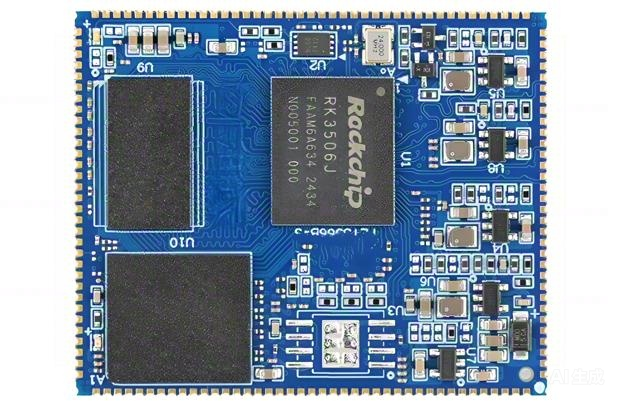

XMS3506J-S System on Module
CPU: Rockchip RK3506J
Architecture: 3x Cortex-A7@1.5GHz+1x Cortex-M0
Frequency: 1.5GHz
RAM: 256MB DDR3，512MB DDR3
ROM: 256MB NandFlash，8GB eMMC
System: Linux 6.1

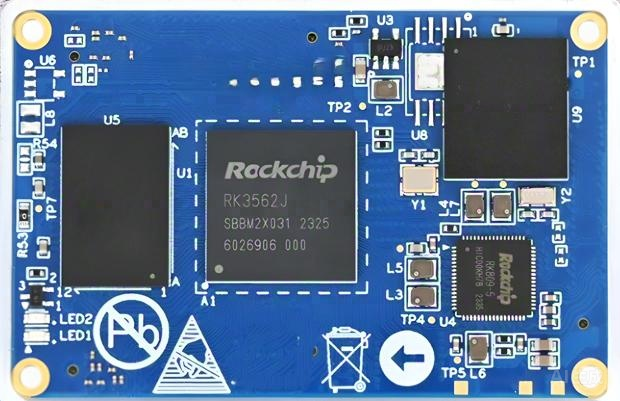

XMS3562J-C System on Module
CPU: Rockchip RK3562/RK3562J
Architecture: 4×Cortex-A53
Frequency: 2.0GHz/1.8GHz
Frequency: 2.0GHz/1.8GHz
ROM: 8GB/16GB eMMC
System: Linux 5.10.198

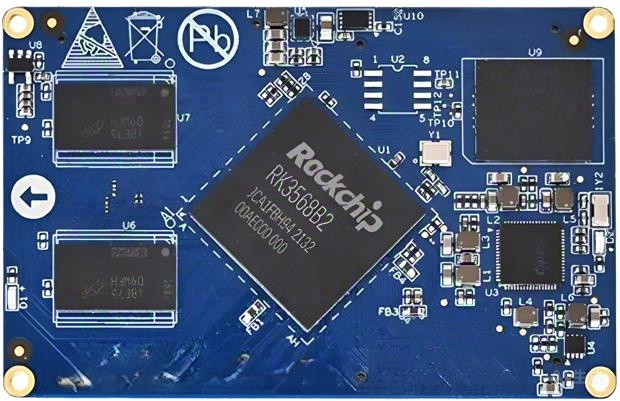

XMS3568-C System On Module
CPU: Rockchip RK3568J/RK3568
Architecture: Cortex-A55
Frequency: 1.8GHz，2.0GHz
RAM: 1GB/2GB/4GB/8GB DDR4
ROM: 8/16/32/64GB eMMC
System: Linux4.19/5.10, Debian 11, Android 11, Forlinx Desktop

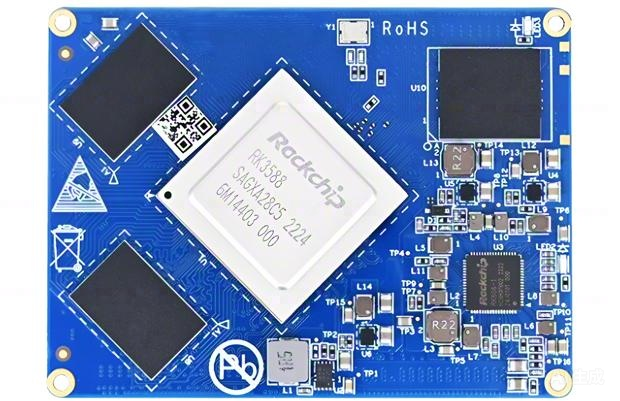

XMS3588-C System On Module
CPU: Rockchip RK3588/RK3588J
Architecture: 4*A76+4*A55
Frequency: A76@2.4GHz，A55@1.8GHz
RAM: 4GB/8GB/16GB LPDDR4x
ROM: 32GB/64GB/128GB eMMC
System: Linux5.10.66, Android12.0
YD-AP24-1089-D2
2.4G Rubber Stick Antenna 108*9.3MM
(working Frequency) 2400-2500 MHZ
(working Frequency) 2400-2500 MHZ ( Gain) 3DBI (Antenna efficiency) 35~80% (VSWR) <1.8 (Ploriaztion) Vertical
Replace RFA-02-C2M2-M10-N
YD-C01-0323
2.4G rubber stick antenna SMA male and female needle - L103mm
Frequency Range 2400~2500MHz ; Gain 2 DBI ;VSWR ≤1.5
Replace ANT-2.4-CW-RCT-xx
Replace ANT-2.4-CW-RCT-SS ;ANT-2.4-CW-RCT-RP
YD-GZX-0540
2.4G-1.13-L310MM-IPEX 1
Frequency Range 2400~2500MHz
Replace RFA-02-G03-D034
VSWR ≤2.0 Input Impedance 50 Ω Gain 0DBI
BSS123K*
2N7002K *
GD25Q16ETIGR

Benefits of using System-on-Module

Accelerate time to market

Minimize risk and reduce development time by using a System on Module as a proven and validated off-the-shelf solution.

Optimize development costs

Avoid the costs associated with designing and manufacturing complex computer hardware and leverage economy of scale.

Offload complexity

Allow your developers to focus on your core application hardware and software and unique product features.

Ensure long-term availability

Benefit from reliable supply and support throughout the lifecycle of your product with guaranteed 15-years SOM availability.
